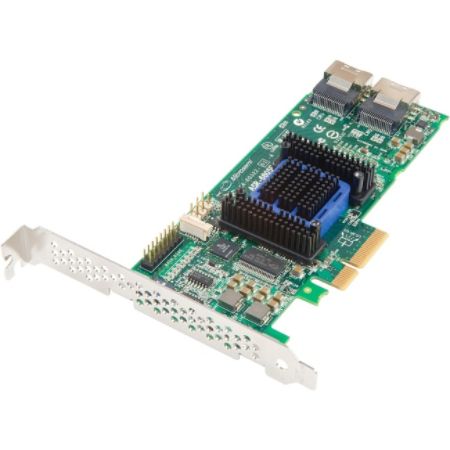

Adaptec 6805E 8-port SAS RAID Controller Item # 150544
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
150544
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Adaptec series 6E unified serial SATA/SAS RAID controller delivers the robustness of hardware RAID and the Adaptec RAID code, enterprise class management features, and full OS support. Delivering the same 6 Gb/s performance of the series 6 controller, the series 6E is optimized for platform where a series 6 controller would not fit in from a price, form factor or host connectivity standpoint.Series 6E controller supports SATA and SAS devices, and has been qualified with the same systems, motherboards, backplanes and drives as series 6 controller. It includes the same drivers, BIOS and storage management tools as series 6 controller and do not require additional training or qualification. Series 6E controller has also been thoroughly tested with entry-level storage devices for desktop use and the entry-level server platforms, workstations and motherboards most typically used for basic servers, performance workstations or industrial PCs.
Product Details
| Item # | 150544 |
| Manufacturer # | KT7244 |
| RAID Levels | 0; 1; 10; 1E; JBOD |
| Number of SAS Ports (Internal) | 8 |
| height | 2.5 in |
| SAS Connector Details | 2 SFF-8087 |
| width | 6.1in. |
| depth | 6.1 in |
| Product Name | 6805E 8-port SAS RAID Controller |
| manufacturer | Adaptec, Inc |
| Host Interface | PCI Express 2.0 x4 |
| Total Number of SAS Ports | 8 |
| RAID Supported | Yes |
| brand name | Adaptec |
| controller type | Serial ATA/600; 6Gb/s SAS |
| Card Height | Low-profile |
| Platform Supported | PC; SPARC |
| form factor | Plug-in Card |
| warranty length | 3-year limited |
| model name | 6805E |
| Show More ▾ |
